自定义视频前处理

---

功能简介

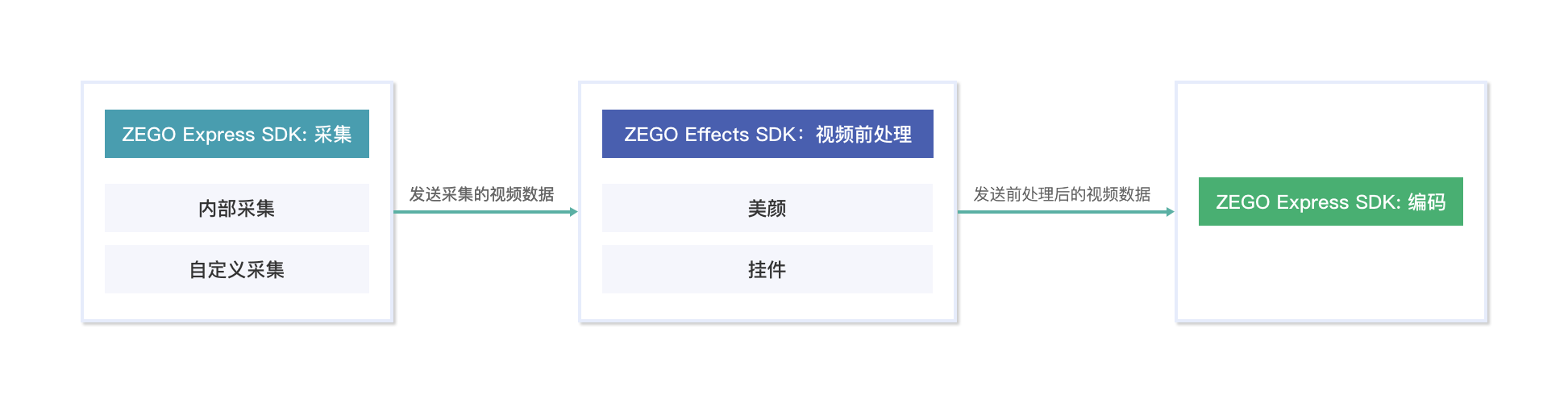

视频前处理是介于采集和编码之间的一个流程，开发者自行采集视频数据，获取到 SDK 采集的视频数据后，可以通过 SDK 自带的基础美颜和水印功能，进行视频前处理。如果 SDK 无法满足开发者需求（例如美颜效果无法达到预期），还可以搭配 ZEGO Effects SDK 对视频进行一些特殊处理，例如美颜、添加挂件等，该过程即为自定义视频前处理。

自定义视频前处理与自定义视频采集相比，优势在于无需开发者管理设备输入源，仅需对 ZEGO Express SDK 抛出来的原始数据进行操作，然后发回 ZEGO Express SDK 即可。

前提条件

在进行自定义视频前处理前，请参考 撰写双端平台代码（插件编写实现） 文档，创建平台通道。

使用步骤

自定义视频前处理的流程与接口调用，如下所示：

sequenceDiagram
    participant FA as Flutter App
    box 自定义方法通道
        participant FS as Flutter side(Custom)
        participant NS as Native side(Custom)
    end
    box RTC Flutter SDK
        participant RFS as Flutter side(RTC)
        participant RNS as Native side(RTC)
    end
    participant NSDK as RTC Native SDK

    activate FA
    activate NSDK

    activate RFS
    FA ->> RFS: createEngine
    activate RNS
    RFS ->> RNS: createEngine
    RNS ->> NSDK: createEngine

    FA ->> RFS: enableCustomVideoProcessing
    RFS ->> RNS: enableCustomVideoProcessing
    deactivate RFS
    RNS ->> NSDK: enableCustomVideoProcessing

    activate FS
    FA ->> FS: setCustomVideoProcessHandler
    activate NS
    FS ->> NS: setCustomVideoProcessHandler
    deactivate FS
    NS ->> RNS: setCustomVideoProcessHandler
    deactivate NS

    activate RFS
    FA ->> RFS: loginRoom
    RFS ->> RNS: loginRoom
    RNS ->> NSDK: loginRoom

    FA ->> RFS: startPreview, startPublishingStream
    RFS ->> RNS: startPreview, startPublishingStream
    deactivate RFS
    RNS ->> NSDK: startPreview, startPublishingStream
    deactivate RNS

    activate NS
    NSDK -->> NS: onStart

    loop Loop
        NSDK -->> NS: onCapturedUnProcessedData
    end
    deactivate NSDK
    deactivate FA

1 设置自定义视频前处理配置

创建自定义视频前处理 ZegoCustomVideoProcessConfig 对象，设置 bufferType 属性，用于向 Express SDK 提供视频帧数据类型。 在开始预览和开始推流前，调用 enableCustomVideoProcessing 接口，开启自定义视频前处理功能。

ZegoCustomVideoProcessConfig config =
    ZegoCustomVideoProcessConfig(ZegoVideoBufferType.RawData);
ZegoExpressEngine.instance.enableCustomVideoProcessing(
    true, config,
    channel: ZegoPublishChannel.Main);

2 设置自定义视频前处理回调

1. 在 Flutter 层新增 setCustomVideoProcessHandler 接口，并通过 MethodChannel 调用 Native 层。

// 开发者自行实现
class ExpressTestImpl {
  final MethodChannel _channel =
      MethodChannel('plugins.zego.im/zego_express_test_demo');

  // 实现 Flutter 调用 Native 接口
  Future<void> setCustomVideoProcessHandler() async {
    await _channel.invokeMethod('setCustomVideoProcessHandler');
  }
}

2. 在 Native 层实现 setCustomVideoProcessHandler 接口能力。

   Android 示例

   // CustomVideoProcess.java
   // 实现 IZegoFlutterCustomVideoProcessHandler
   public class CustomVideoProcess implements IZegoFlutterCustomVideoProcessHandler {
       @SuppressLint("StaticFieldLeak")
       private static CustomVideoProcess instance;

       public static CustomVideoProcess getInstance() {
           if (instance == null) {
               synchronized (CustomVideoProcess.class) {
                   if (instance == null) {
                       instance = new CustomVideoProcess();
                   }
               }
           }
           return instance;
       }

       @Override
       public void onStart(ZGFlutterPublishChannel channel) {
       }

       @Override
       public void onStop(ZGFlutterPublishChannel channel) {
       }

       @Override
       public void onCapturedUnprocessedTextureData(int textureID, int width, int height, long referenceTimeMillisecond, ZGFlutterPublishChannel channel) {
       }

       @Override
       public void onCapturedUnprocessedRawData(ByteBuffer data, int[] dataLength, ZGFlutterVideoFrameParam param, long referenceTimeMillisecond, ZGFlutterPublishChannel channel) {
       }

       @Override
       public SurfaceTexture getCustomVideoProcessInputSurfaceTexture(int width, int height, ZGFlutterPublishChannel channel) {
       }
   }

   // ExpressTestPlugin.java
   // methodChannel 示例
   public class ExpressTestPlugin implements FlutterPlugin, MethodChannel.MethodCallHandler {

       private MethodChannel methodChannel;

       @Override
       public void onAttachedToEngine(@NonNull FlutterPluginBinding binding) {
           methodChannel = new MethodChannel(binding.getBinaryMessenger(), "plugins.zego.im/zego_express_test_demo");
           methodChannel.setMethodCallHandler(this);
       }

       @Override
       public void onDetachedFromEngine(@NonNull FlutterPluginBinding binding) {
           methodChannel.setMethodCallHandler(null);
       }

       @Override
       public void onMethodCall(@NonNull MethodCall call, @NonNull MethodChannel.Result result) {
           switch (call.method) {
               case "setCustomVideoProcessHandler": {
                   ZegoCustomVideoProcessManager.getInstance().setCustomVideoProcessHandler(CustomVideoProcess.getInstance());
                   result.success(true);
                   break;
               }
           }
       }
   }

   iOS 示例

   // CustomVideoProcess.h
   @interface CustomVideoProcess : NSObject <ZegoFlutterCustomVideoProcessHandler>

   /// Get the custom video capture manager instance
   + (instancetype)sharedInstance;

   @end

   // CustomVideoProcess.m
   @interface CustomVideoProcess()

   @end

   @implementation CustomVideoProcess

   + (instancetype)sharedInstance {
       static CustomVideoProcess *instance = nil;
       static dispatch_once_t onceToken;
       dispatch_once(&onceToken, ^{
           instance = [[CustomVideoProcess alloc] init];
       });
       return instance;
   }

   - (void)onStart:(ZGFlutterPublishChannel)channel {
   }

   - (void)onStop:(ZGFlutterPublishChannel)channel {
   }

   - (void)onCapturedUnprocessedCVPixelBuffer:(CVPixelBufferRef)buffer
                                    timestamp:(CMTime)timestamp
                                      channel:(ZGFlutterPublishChannel)channel {
   }

   @end

   // ZegoExpressTestPlugin.h
   // methodChannel 示例
   @interface ZegoExpressTestPlugin : NSObject<FlutterPlugin>

   @end

   // ZegoExpressTestPlugin.m
   // methodChannel 示例
   @interface ZegoExpressTestPlugin ()

   @property (nonatomic, weak) id<FlutterPluginRegistrar> registrar;

   @property (nonatomic, strong) FlutterMethodChannel *methodChannel;

   @end

   @implementation ZegoExpressTestPlugin

   + (void)registerWithRegistrar:(NSObject<FlutterPluginRegistrar>*)registrar {
       ZegoExpressTestPlugin *instance = [[ZegoExpressTestPlugin alloc] init];

       instance.registrar = registrar;

       FlutterMethodChannel *methodChannel = [FlutterMethodChannel
         methodChannelWithName:@"plugins.zego.im/zego_express_test_demo"
               binaryMessenger:[registrar messenger]];
       [registrar addMethodCallDelegate:instance channel:methodChannel];
       instance.methodChannel = methodChannel;
   }

   - (void)detachFromEngineForRegistrar:(NSObject<FlutterPluginRegistrar>*)registrar {
       [_methodChannel setMethodCallHandler:nil];
       _methodChannel = nil;
       _registrar = nil;
   }

   #pragma mark - Handle Method Call

   - (void)handleMethodCall:(FlutterMethodCall*)call result:(FlutterResult)result {
       SEL selector = NSSelectorFromString([NSString stringWithFormat:@"%@:result:", call.method]);

       // Handle unrecognized method
       if (![self respondsToSelector:selector]) {
           result(@(false));
           return;
       }

       NSMethodSignature *signature = [self methodSignatureForSelector:selector];
       NSInvocation* invocation = [NSInvocation invocationWithMethodSignature:signature];

       invocation.target = self;
       invocation.selector = selector;
       [invocation setArgument:&call atIndex:2];
       [invocation setArgument:&result atIndex:3];
       [invocation invoke];
   }

   - (void)setCustomVideoProcessHandler:(FlutterMethodCall*)call result:(FlutterResult)result {
       [[ZegoCustomVideoProcessManager sharedInstance] setCustomVideoProcessHandler:[CustomVideoProcess sharedInstance]];
       result(@(true));
   }

   @end

3. 调用 ExpressTestImpl.setCustomVideoProcessHandler 设置自定义视频前处理回调。

   ExpressTestImpl.instance.setCustomVideoProcessHandler();

3 后续操作

本文仅说明如何在 Flutter 端开启自定义视频前处理功能，进阶功能详见 iOS 自定义视频前处理 及 Android 自定义视频前处理 文档。
