更新时间:2022-11-02 11:36
本文将为您介绍如何自定义视频采集旋转方式。
对于 v2.23.0 及以后版本,如需自定义视频采集旋转方式,为避免与其他视频朝向模式冲突,请勿调用 setAppOrientationMode 设置除自定义模式外的模式。
如您想在移动端视频通话或直播时实现自定义的画面旋转表现,可参考以下三种常见实现方式:
以下示例中“拉流端”渲染画面的模式以默认的 “ZegoViewModeAspectFit”(等比缩放,可能有黑边)方式,具体请参考 ZegoViewMode。

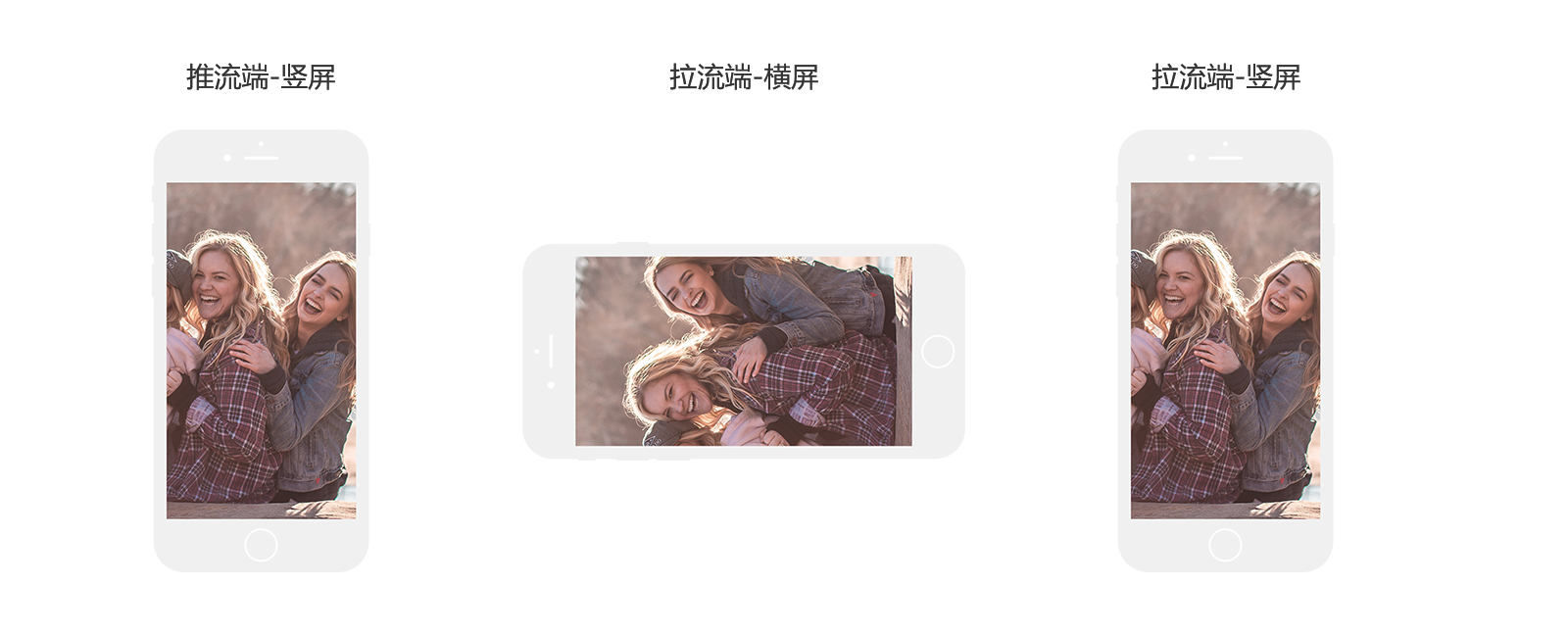

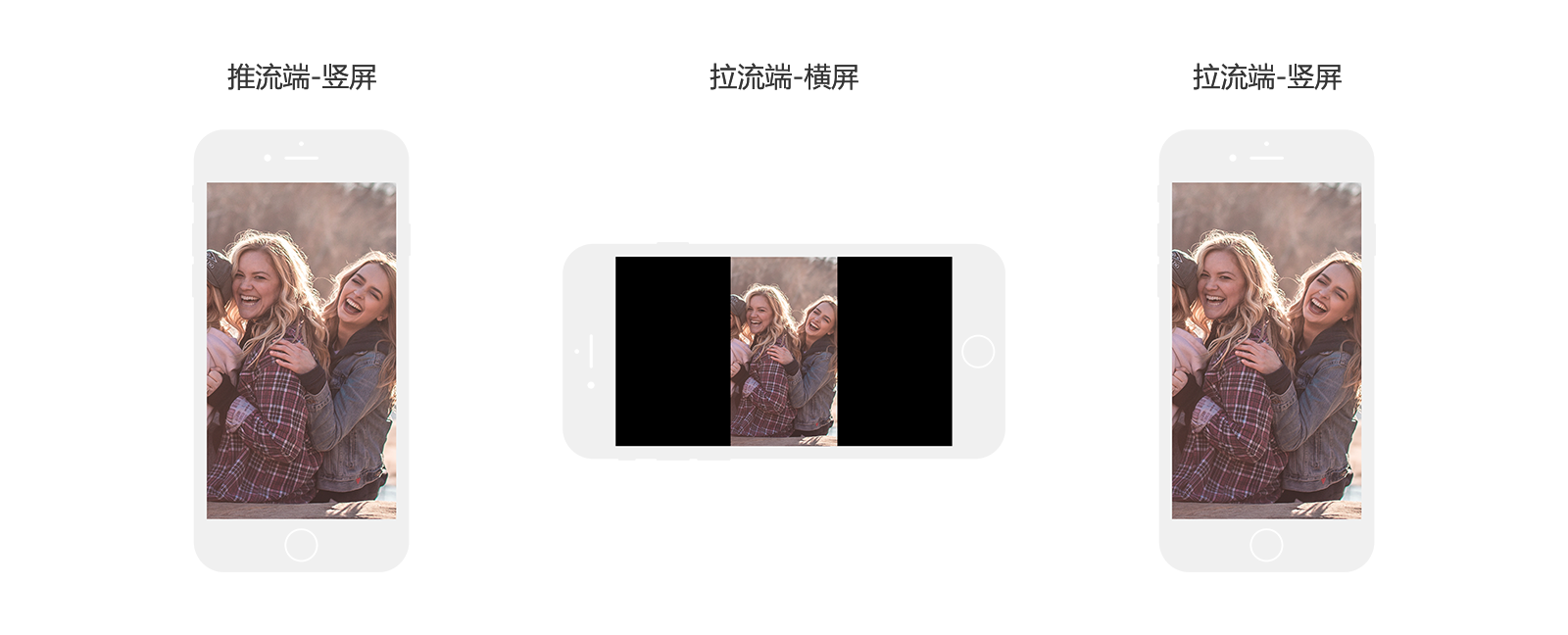

固定竖屏:表示推流端固定采集以竖屏方式展示的视频,此时当对端设备方向为竖屏时,观看到的画面为充满设备屏幕的竖屏效果。当对端设备方向为横屏时,观看到的画面为相对推流端图像有一定旋转角度的效果(下图以逆时针旋转 90 度为例)。

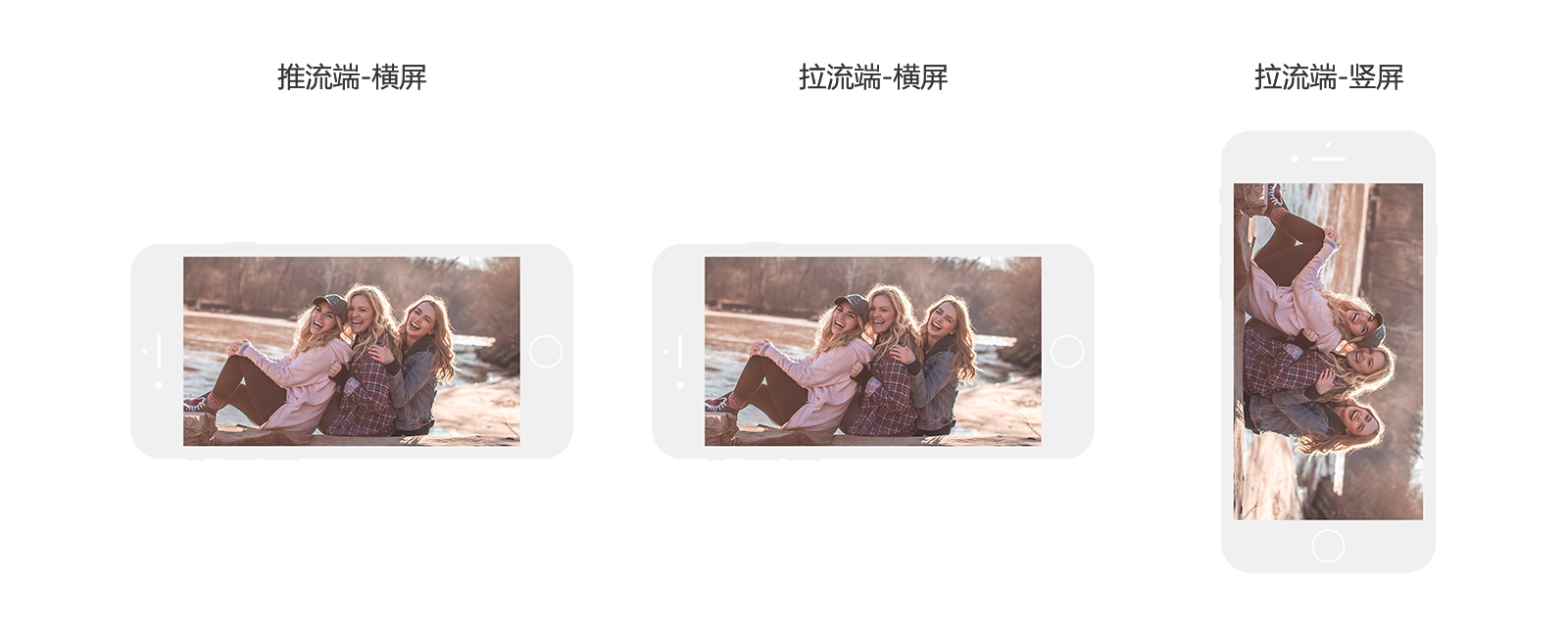

固定横屏:表示推流端固定采集以横屏方式展示的视频,此时当对端设备方向为横屏时,观看到的画面为充满设备屏幕的横屏效果。当对端设备方向为竖屏时,观看到的画面为相对推流端图像有一定旋转角度的效果(下图以逆时针旋转 90 度为例)。

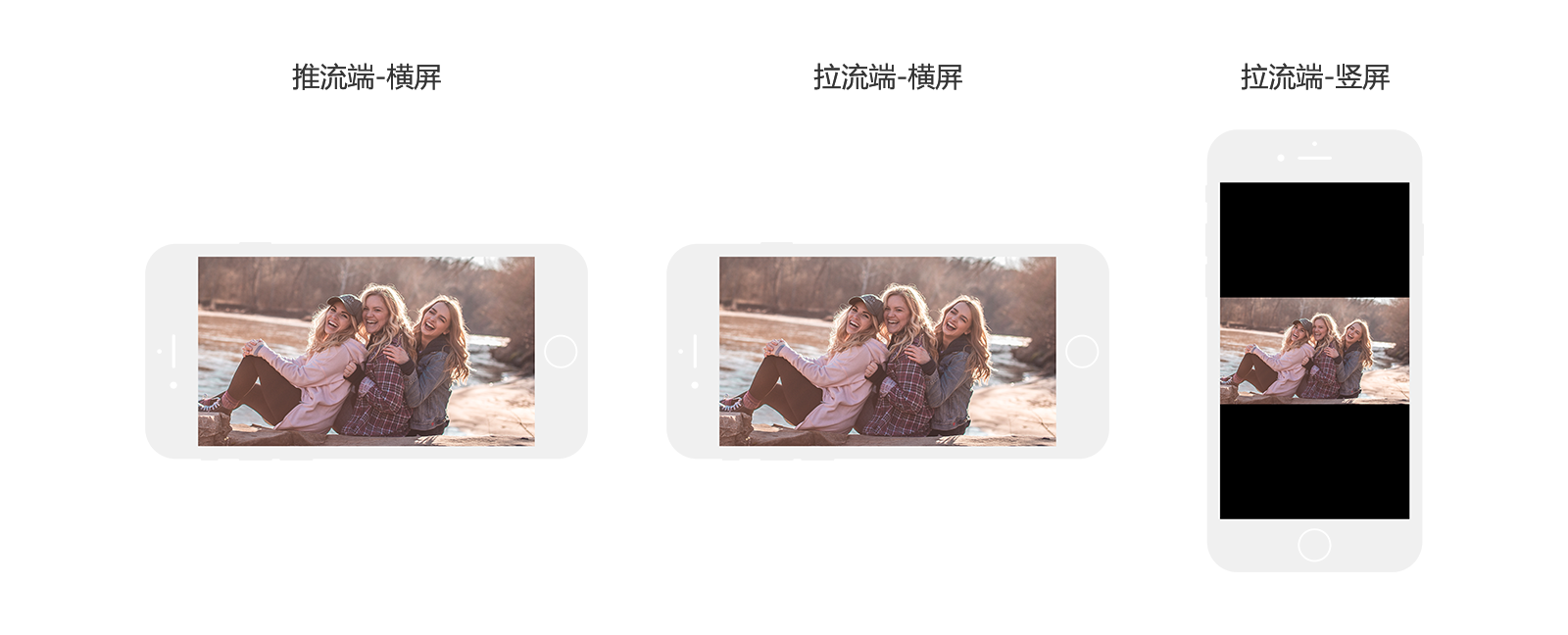

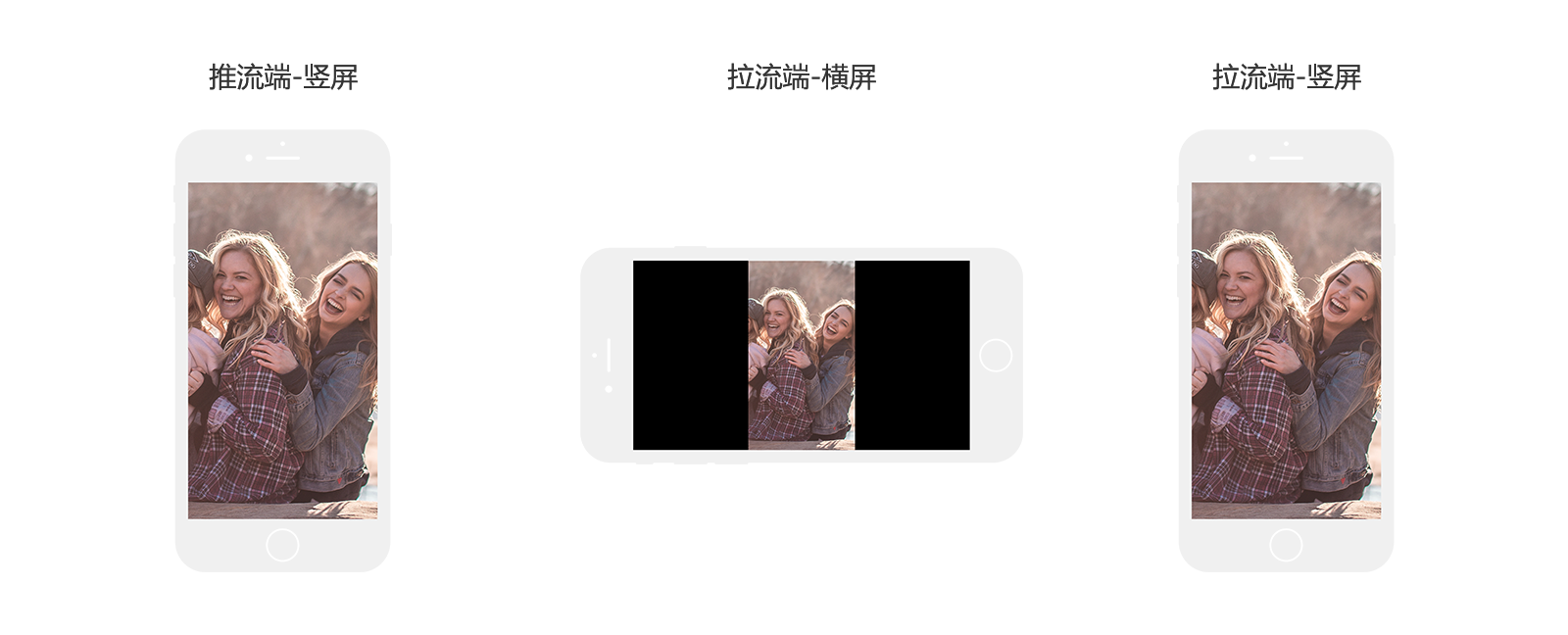

横竖屏自动切换:提供视频旋转功能,用户可以根据需要将视频相比于手机正立的方向逆时针旋转 90,180 或 270 度。便于用户结合视频场景需要,获取想要的视频渲染效果。视频旋转后会自动进行调整,以适配编码后的图像分辨率。
以上三种方式调用的接口存在差异,详细描述请参考本文的 实现流程。
请参考 下载示例源码 获取源码。
相关源码请查看 “/ZegoExpressExample/Examples/CommonFeatures/VideoRotation” 目录下的文件。
在实现视频采集旋转之前,请确保:
使用竖屏直播或视频通话时,宽的分辨率应比高的分辨率小,假设为 “360 × 640”,则需要通过如下步骤实现功能。
ZegoEngineProfile *profile = [[ZegoEngineProfile alloc] init];
// 请通过官网注册获取,格式为:1234567890
profile.appID = appID;
// 请通过官网注册获取
profile.appSign = appSign;
//通用场景接入,请根据实际情况选择合适的场景
profile.scenario = ZegoScenarioDefault;
// 创建引擎,并注册 self 为 eventHandler 回调。不需要注册回调的话,eventHandler 参数可以传 nil,后续可调用 "-setEventHandler:" 方法设置回调
[ZegoExpressEngine createEngineWithProfile:profile eventHandler:self];
ZegoVideoConfig *videoConfig = [[ZegoVideoConfig alloc] init];
videoConfig.encodeResolution = CGSizeMake(360, 640);
[[ZegoExpressEngine sharedEngine] setVideoConfig:videoConfig];
ZegoUser *user = [ZegoUser userWithUserID:@"test_userid"];
[[ZegoExpressEngine sharedEngine] loginRoom:@"test_roomid" user:user];
ZegoCanvas *previewCanvas = [ZegoCanvas canvasWithView:previewView];
[[ZegoExpressEngine sharedEngine] startPreview:previewCanvas];
[[ZegoExpressEngine sharedEngine] startPublishingStream:@"test_streamid"];
使用竖屏直播或视频通话时,宽的分辨率应比高的分辨率小,假设为 “360 × 640”,则需要通过如下步骤实现功能。
// 创建引擎,通用场景接入,并注册 self 为 eventHandler 回调
// 不需要注册回调的话,eventHandler 参数可以传 null,后续可调用 "setEventHandler:" 方法设置回调
ZegoEngineProfile profile = new ZegoEngineProfile();
profile.appID = ; // 请通过官网注册获取,格式为:1234567890L
profile.appSign = ; // 请通过官网注册获取,格式为:"1234567890"
profile.scenario = ZegoScenario.DEFAULT; // 通用场景接入,请根据实际情况选择合适的场景
profile.application = getApplication();
engine = ZegoExpressEngine.createEngine(profile, null);
ZegoVideoConfig config = new ZegoVideoConfig();
竖屏直播的分辨率设置如下:
config.setEncodeResolution(360, 640);
ZegoExpressEngine.getEngine().setVideoConfig(config);
ZegoExpressEngine.getEngine().loginRoom("test_roomid", new ZegoUser("test_userid"), null);
ZegoExpressEngine.getEngine().startPreview(new ZegoCanvas(textureViewLocalPreview));
ZegoExpressEngine.getEngine().startPublishingStream("test_streamid");
使用横屏直播或视频通话时,宽的分辨率应比高的分辨率大,假设为 “640 × 360”,则需要通过如下步骤实现功能。
ZegoEngineProfile *profile = [[ZegoEngineProfile alloc] init];
// 请通过官网注册获取,格式为:1234567890
profile.appID = appID;
// 请通过官网注册获取
profile.appSign = appSign;
//通用场景接入,请根据实际情况选择合适的场景
profile.scenario = ZegoScenarioDefault;
// 创建引擎,并注册 self 为 eventHandler 回调。不需要注册回调的话,eventHandler 参数可以传 nil,后续可调用 "-setEventHandler:" 方法设置回调
[ZegoExpressEngine createEngineWithProfile:profile eventHandler:self];
横屏直播的分辨率设置如下:
ZegoVideoConfig *videoConfig = [[ZegoVideoConfig alloc] init];
videoConfig.encodeResolution = CGSizeMake(640, 360);
[[ZegoExpressEngine sharedEngine] setVideoConfig:videoConfig];
[[ZegoExpressEngine sharedEngine] setAppOrientation:UIInterfaceOrientationLandscapeLeft];
ZegoUser *user = [ZegoUser userWithUserID:@"test_userid"];
[[ZegoExpressEngine sharedEngine] loginRoom:@"test_roomid" user:user];
ZegoCanvas *previewCanvas = [ZegoCanvas canvasWithView:previewView];
[[ZegoExpressEngine sharedEngine] startPreview:previewCanvas];
[[ZegoExpressEngine sharedEngine] startPublishingStream:@"test_streamid"];
使用横屏直播或视频通话时,宽的分辨率应比高的分辨率大,假设为 “640 × 360”,则需要通过如下步骤实现功能。
// 创建引擎,通用场景接入,并注册 self 为 eventHandler 回调
// 不需要注册回调的话,eventHandler 参数可以传 null,后续可调用 "setEventHandler:" 方法设置回调
ZegoEngineProfile profile = new ZegoEngineProfile();
profile.appID = ; // 请通过官网注册获取,格式为:1234567890L
profile.appSign = ; // 请通过官网注册获取,格式为:"1234567890"
profile.scenario = ZegoScenario.DEFAULT; // 通用场景接入,请根据实际情况选择合适的场景
profile.application = getApplication();
engine = ZegoExpressEngine.createEngine(profile, null);
ZegoVideoConfig config = new ZegoVideoConfig();
横屏直播的分辨率设置如下:
config.setEncodeResolution(640, 360);
ZegoExpressEngine.getEngine().setVideoConfig(config);
ZegoExpressEngine.getEngine().setAppOrientation(ZegoOrientation.ORIENTATION_90);
ZegoExpressEngine.getEngine().loginRoom("test_roomid", new ZegoUser("test_userid"), null);
ZegoExpressEngine.getEngine().startPreview(new ZegoCanvas(textureViewLocalPreview));
ZegoExpressEngine.getEngine().startPublishingStream("test_streamid");
若直播或视频通话过程中 App 的设置为视频画面根据重力感应的变化而旋转,则需要监听对应平台的屏幕旋转事件,并依此做视频方向的旋转。
当开发者使用 SDK 采集时,横竖屏的切换主要通过 setVideoConfig 接口设置编码分辨率,并通过 setAppOrientation 接口设置视频朝向。
[[UIDevice currentDevice] beginGeneratingDeviceOrientationNotifications];
[[NSNotificationCenter defaultCenter] addObserver:self selector:@selector(orientationChanged:) name:UIDeviceOrientationDidChangeNotification object:[UIDevice currentDevice]];
- (void)orientationChanged:(NSNotification *)notification {
UIDevice *device = notification.object;
ZegoVideoConfig *videoConfig = [[ZegoExpressEngine sharedEngine] getVideoConfig];
UIInterfaceOrientation orientation = UIInterfaceOrientationUnknown;
switch (device.orientation) {
// Note that UIInterfaceOrientationLandscapeLeft is equal to UIDeviceOrientationLandscapeRight (and vice versa).
// This is because rotating the device to the left requires rotating the content to the right.
case UIDeviceOrientationLandscapeLeft:
orientation = UIInterfaceOrientationLandscapeRight;
videoConfig.encodeResolution = CGSizeMake(640, 360);
break;
case UIDeviceOrientationLandscapeRight:
orientation = UIInterfaceOrientationLandscapeLeft;
videoConfig.encodeResolution = CGSizeMake(640, 360);
break;
case UIDeviceOrientationPortrait:
orientation = UIInterfaceOrientationPortrait;
videoConfig.encodeResolution = CGSizeMake(360, 640);
break;
case UIDeviceOrientationPortraitUpsideDown:
orientation = UIInterfaceOrientationPortraitUpsideDown;
videoConfig.encodeResolution = CGSizeMake(360, 640);
break;
default:
// Unknown / FaceUp / FaceDown
break;
}
[[ZegoExpressEngine sharedEngine] setVideoConfig:videoConfig];
[[ZegoExpressEngine sharedEngine] setAppOrientation:orientation];
}
当开发者使用 自定义视频采集 时,监听设备方向变化后,可参考以下两种方式实现横竖屏自动切换:
若直播或视频通话过程中 App 的设置为视频画面根据重力感应的变化而旋转,则需要监听对应平台的屏幕旋转事件,并依此做视频方向的旋转。
当开发者使用 SDK 采集时,横竖屏切换主要通过 setVideoConfig 接口设置编码分辨率,并通过 setAppOrientation 接口设置视频朝向。
在对应 Activity 中监听屏幕旋转事件触发的 “onConfigurationChanged” 回调,在事件处理的回调中修改对应编码分辨率并告知 SDK App 的方向。
@Override
public void onConfigurationChanged(Configuration newConfig) {
super.onConfigurationChanged(newConfig);
// Checks the orientation of the screen
ZegoVideoConfig videoConfig = ZegoExpressEngine.getEngine().getVideoConfig();
ZegoOrientation orientation = ZegoOrientation.ORIENTATION_0;
if(Surface.ROTATION_0 == this.getWindowManager().getDefaultDisplay().getRotation()){
orientation = ZegoOrientation.ORIENTATION_0;
videoConfig.setEncodeResolution(360, 640);
}else if(Surface.ROTATION_180 == this.getWindowManager().getDefaultDisplay().getRotation()){
orientation = ZegoOrientation.ORIENTATION_180;
videoConfig.setEncodeResolution(360, 640);
}else if(Surface.ROTATION_270 == this.getWindowManager().getDefaultDisplay().getRotation()){
orientation = ZegoOrientation.ORIENTATION_270;
videoConfig.setEncodeResolution(640, 360);
}else if(Surface.ROTATION_90 == this.getWindowManager().getDefaultDisplay().getRotation()){
orientation = ZegoOrientation.ORIENTATION_90;
videoConfig.setEncodeResolution(640, 360);
}
ZegoExpressEngine.getEngine().setAppOrientation(orientation);
ZegoExpressEngine.getEngine().setVideoConfig(videoConfig);
}
当开发者使用 自定义视频采集 时,监听设备方向变化后,可参考以下两种方式实现横竖屏切换:
若录制出来的直播流无法观看,可能原因为:由于横竖屏切换时,流的编码分辨率被修改,部分第三方播放器对分辨率修改的视频兼容性不好,可能会出现播放失败的问题,因此一般不推荐在直播或视频过程中进行横竖屏切换时修改分辨率。
